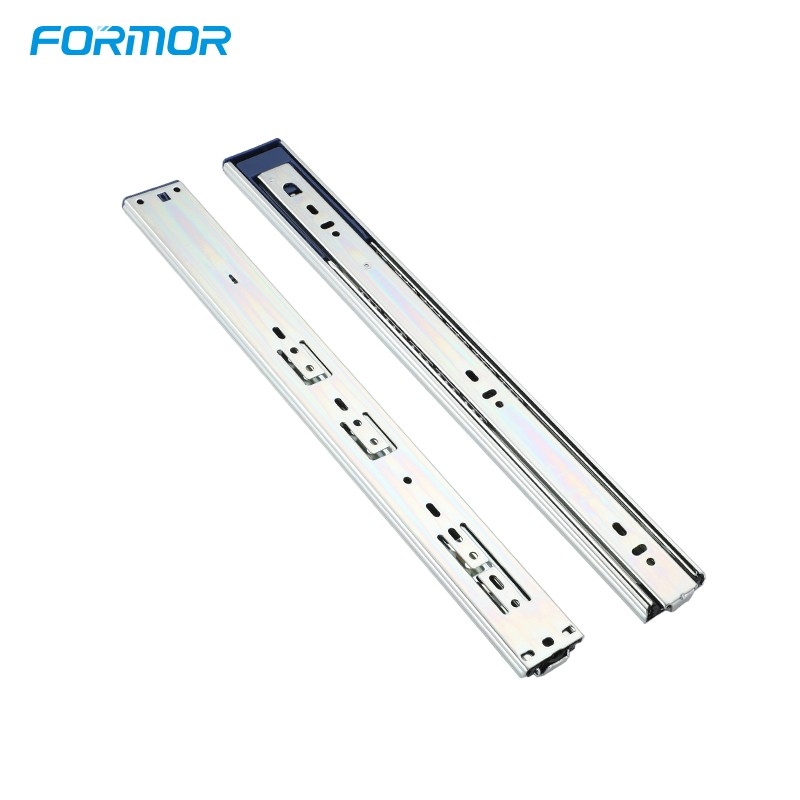

Push To Open Drawer Slides Full Extension Rail

Push To Open Drawer Slides Full Extension Rail

  • Item NO.:

    DS-PO59
  • Width:

    45mm
  • Thickness:

    1.2*1.1*1.4mm
  • Material:

    Cold-Rolled Steel
  • Finish:

    Rainbow Zinc/Black
  • Length:

    250-600mm
  • Loading Capacity:

    45Kgs / 450mm
  • Packing:

    15 Pairs / Carton
  • Product Details

Product Description

Premium Shanghai Material Cold-Rolled Steel

Crafted from high-grade cold-rolled steel treated with advanced Shanghai material surface technology, this slide offers enhanced structural integrity, superior corrosion resistance, and exceptional durability for demanding applications.



Versatile Thickness Configurations for Custom Applications

Available in multiple material thickness options (1.0×1.0×1.2mm, 1.2×1.1×1.4mm, 0.9×0.9×0.9mm) to suit specific load requirements and application needs, from standard to heavy-duty use.



Fully Enclosed Surface with Dual-Spring Hook Mechanism

Features a sealed surface that protects internal components from dust and debris, combined with a dual-spring hook system for secure attachment and controlled, quiet closing.



High 45kg Load Capacity with Ball-Bearing System

Engineered to support up to 45kg per pair, featuring a precision ball-bearing glide mechanism that delivers consistently smooth and quiet performance even under full load.

45MM SLIDE

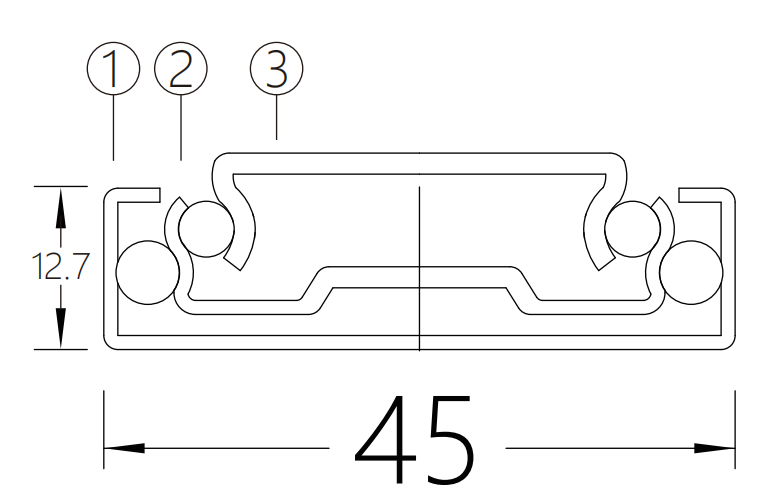

Product Drawing

This drawing provides a full overview of the mounting positions and product dimensions, making installation easier and more accurate.

Width: 45 mm

Length:250-600mm

Height: 12.7 mm

*For customized sizes, OEM and ODM service is available.

45mm Thickness available
0.9*0.9*1.0mm
1.0*1.0*1.2mm
1.2*1.2*1.4mm

45mm slide drawing





Product Application

Ideal for all types of Living room, Bedroom, Kitchen, Bathroom.

Designed for smooth movement, strong durability and everyday convenience.

The advanced Nickel Plated finish ensures the hinge remains rust-free even in humid environments.

application



Quality Control & Testing

"Details Make a Difference" - Our Rigorous QC Process At FORMOR, quality isn't just a promise; it's a process verified by data.



Salt Spray Test: 48hours verified resistance to corrosion.

Cycle Testing: Proven to withstand 50,000+ open/close cycles.

Inspection: 100% standard product inspection before packaging to determine the ultimate feeling of use.

SGS report



OEM & ODM Service



1. Product Logo Customization

We offer laser marking, stamping logo options to match your branding needs.

Customized logo solutions are available for hinges, drawer systems, and other hardware products.



2. Outer Carton Customization

Cartons can be customized with your logo, color, labeling, and packaging specifications.

We support OEM carton design to ensure safe shipping and a premium brand presentation.



3. Color Polybag / Logo Polybag / Blister / Paper Cover Customization

Color Polybag / Logo Polybag / Blister / Paper Cover can be customized with your logo, labeling, and packaging specifications.

We support OEM carton design to ensure safe shipping and a premium brand presentation.



4. Mould Customization

We can develop new moulds based on your drawings or samples.

Our engineering team supports structural adjustments, prototype verification, and full OEM customization for hinges, slides, and drawer systems.



5. Material Customization

Materials can be customized with premium Shanghai Shinny, Shanghai Matt, Q235 and Jieyang cold-rolled steel options.

We provide material selection support to meet different budget levels, performance requirements, and target markets.



6. Surface Finishing Customization

We offer multiple surface finishing options to meet different design and corrosion-resistance requirements.

Available finishes include single-layer nickel plating, copper + nickel double-layer plating, titanium plating, black plating, black spraying, and gold spraying.

OEM PACKINGslide customized

FAQ



Q: What load capacity do normal ball bearing slides offer?

A: Standard models typically support 30–45 kg, depending on size and installation.



Q: Do normal ball bearing slides allow smooth operation under load?

A: Yes. Precision steel balls reduce friction and ensure smooth operation even under rated load.



Q: Can ball bearing slides be removed after installation?

A: Yes. Most models feature a disconnect lever for easy drawer removal.



Q: Are ball bearing slides suitable for frequent use?

A: Yes. They are designed for frequent daily operation and tested for long service life.
