Surface Mount Furniture Lock with Extended Tongue

Surface Mount Furniture Lock with Extended Tongue

  • Item NO.:

    FL-CD03(待修改)
  • Material:

    Iron
  • Finish:

    Nickel/Chrome/Gold
  • Size:

    D19*L22mm/D19*L32mm
  • Packing:

    240 Sets / Carton
  • Product Details

Product Description

Surface Mount Installation: The lock body mounts directly onto the furniture surface, eliminating the need for a large recessed slot in the panel. This simplifies machining and installation while making the lock easier to fit onto different furniture panels.


Extended Lock Tongue: The 15mm extended lock tongue provides deeper engagement with the locking position, creating a longer locking reach than the 8mm tongue used on the compact version. It is suitable for applications requiring a longer locking stroke.


Two-Turn Key Operation: The key completes two full rotations to drive the locking mechanism through a longer locking stroke. Compared with conventional one-turn operation, the two-turn design provides more travel for the lock tongue during locking and unlocking.


Selectable Lock Tongue Width: The lock tongue is available in two width options, 19.7mm and 17.6mm, allowing the locking configuration to be selected according to the furniture application and installation requirements.

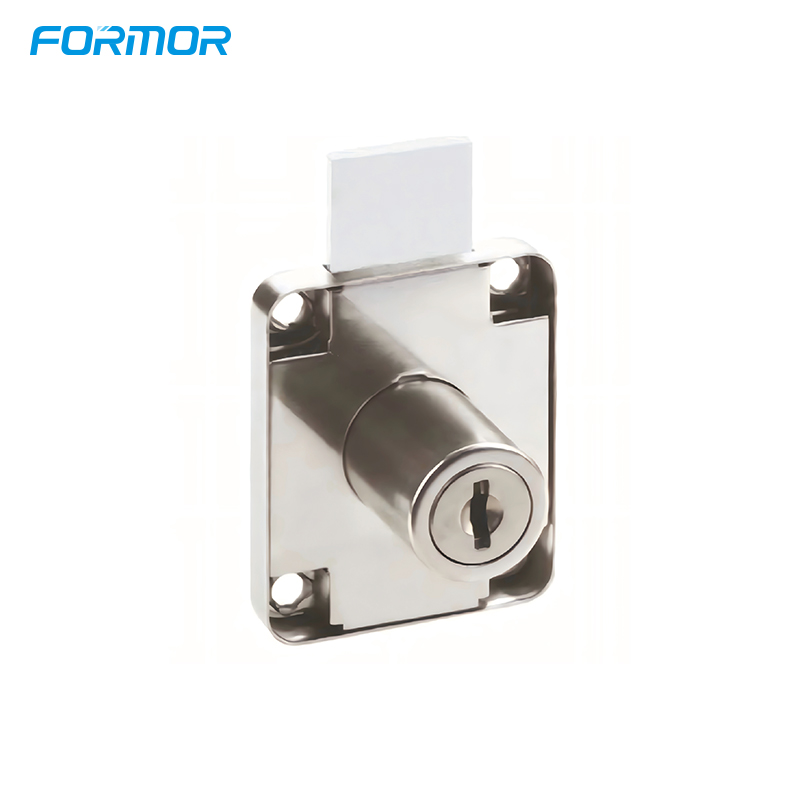

FL-CD03 Surface Mount Cabinet Lock

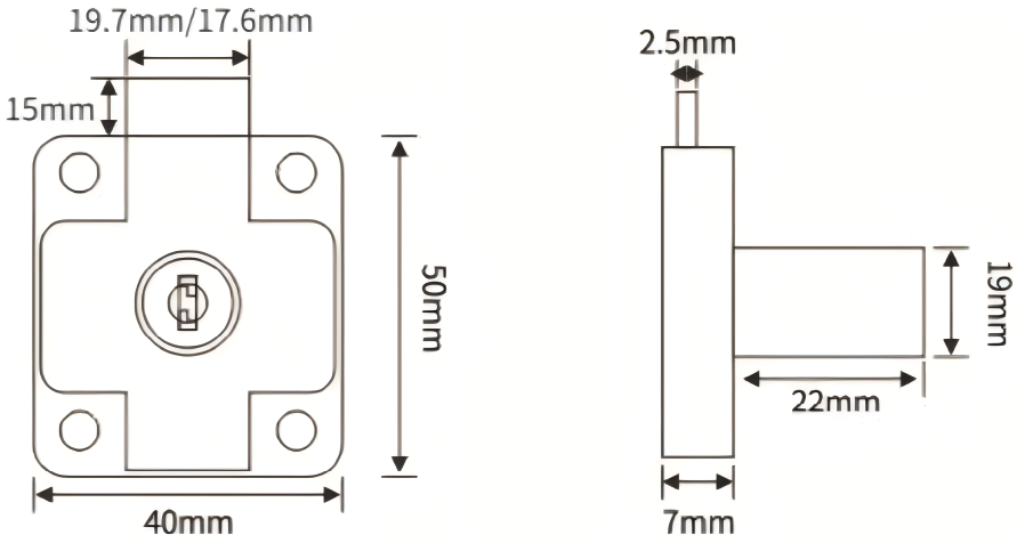

Product Drawing

This drawing provides a full overview of the mounting positions and product dimensions, making installation easier and more accurate.

*For customized sizes, OEM and ODM service is available.

FL-CD03 Furniture Lock Dimension Drawing





Product Application

Suitable for drawers and cabinets in living rooms, bedrooms, kitchens, and bathrooms.

Designed to provide secure locking with smooth key operation for everyday furniture use.

The metal construction with protective surface finish helps maintain durability and corrosion resistance, even in humid environments.

application



Quality Control & Testing

"Details Make a Difference" - Our Rigorous QC Process At FORMOR, quality isn't just a promise; it's a process verified by data.



Inspection: 100% standard product inspection before packaging to determine the ultimate feeling of use.

SGS report



OEM & ODM Service



1. Key Type Customization

Multiple key options are available, including plastic keys, iron keys, and folding keys, to meet different security levels and user preferences.



2. Lock Material Selection

Lock bodies can be manufactured using iron, zinc alloy, or a combination of zinc alloy and iron, allowing flexibility in strength, durability, and cost control.



3. Surface Finish Options

Surface treatments such as nickel plated or chrome plated finishes are available to enhance corrosion resistance and appearance.



4. Lock Structure And Size Customization

Lock dimensions, cam structure, and mounting specifications can be customized to fit different drawer and cabinet designs.



5. Branding And Logo Support

Support logo engraving, stamping, or printed branding on locks or packaging for OEM and private label projects.



6. Outer Carton Customization

Outer cartons can be customized with printed logos, product information, and packaging designs to meet branding and export requirements.

OEM PACKING



FAQ



Q: Is this lock suitable for new furniture production or replacement applications?
A: Yes. Its surface-mounted design makes it suitable for both new furniture production and replacement of existing furniture locks, depending on the available mounting space and hole position.


Q: What should I consider when choosing between the two lock tongue widths?
A: The choice mainly depends on the available locking position and the matching requirements of the furniture. We offer 19.7mm and 17.6mm options for different applications.


Q: What is the advantage of a two-turn locking operation?
A: A two-turn operation gives the lock tongue a longer travel during locking and unlocking. This makes the mechanism suitable for applications where a longer locking stroke is required.


Q: Can this lock be customized for different furniture applications?
A: Yes. As an OEM supplier, we can discuss customization according to the required dimensions, lock tongue configuration, mounting requirements, and application.
