Home > Products > Drawer Systems Series > Drawer Systems >

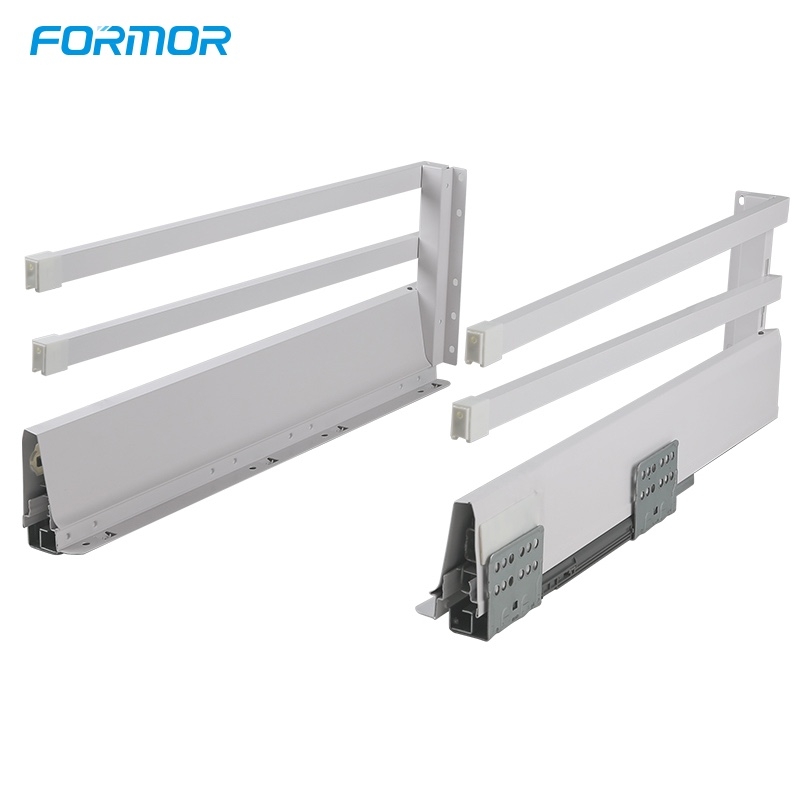

Tandem Box For Modern Kitchen Furniture

Tandem Box For Modern Kitchen Furniture

  • Item NO.:

    TB-1832
  • Material:

    Galvanized Steel
  • Thickness:

    1.5*2.0*1.5mm
  • Wood Board Thickness:

    16/18mm
  • Color:

    White/Dark Grey/Light Grey
  • Length:

    300-550mm
  • Height:

    183mm
  • Loading Capacity:

    35Kgs
  • Packing:

    6 Sets / Carton
  • Product Details

Product Description

Complete Metal Drawer Box Construction:Manufactured with durable metal drawer sides, available in White, Grey, and Dark Grey finishes, combining structural strength, corrosion resistance, and a clean, modern appearance.



Suitable For Furniture Manufacturing And Projects:Ideal for kitchen cabinets, wardrobes, and storage furniture, suitable for OEM production, custom furniture manufacturing, and large-scale project installations.



Soft Closing For Quiet Operation:Integrated soft close mechanism ensures controlled and silent closing, effectively eliminating slamming noise and enhancing overall user comfort.



Full Extension For Complete Accessibility:The full pull-out design allows easy access to the entire drawer space, making it convenient to reach items stored at the back of the drawer.

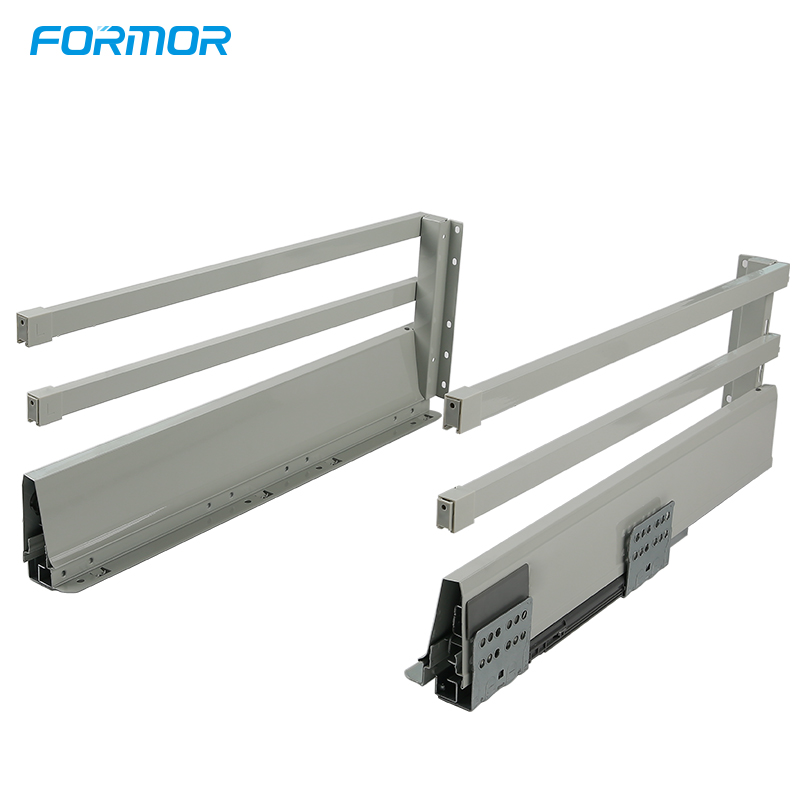

TB-1832 Metal Box Installation Drawing





Product Drawing

This drawing provides a full overview of the mounting positions and product dimensions, making installation easier and more accurate.

*For customized sizes, OEM and ODM service is available.

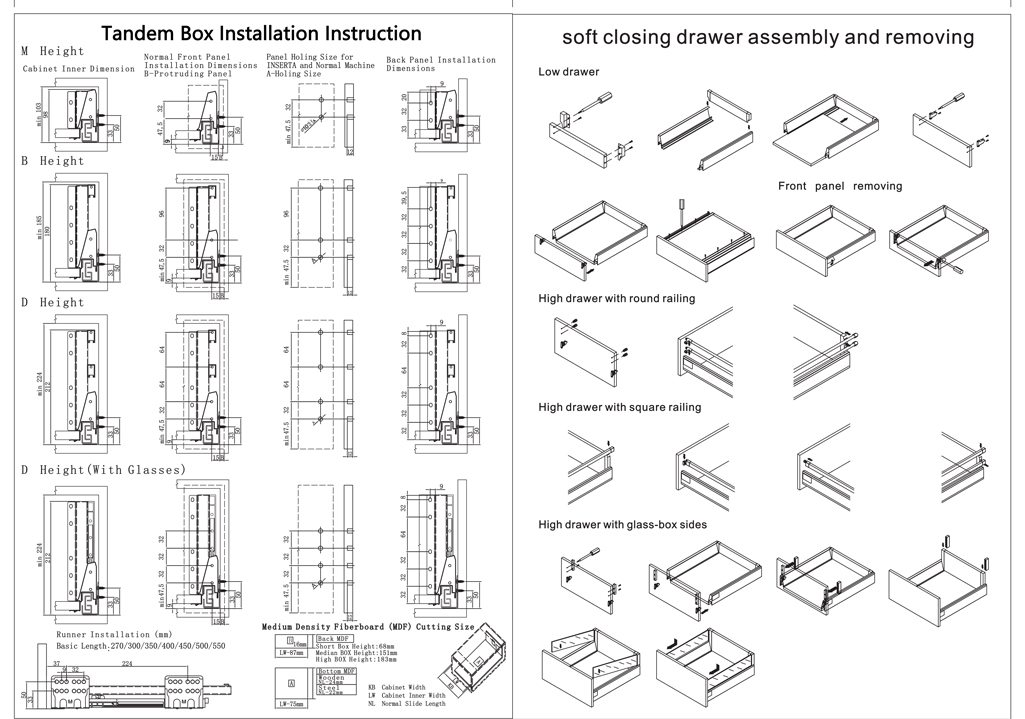

TB-1512 Tandem Box installation Drawing



Product Application

The Tandem Box drawer system is widely used in kitchen cabinets, wardrobes, bathroom vanities, and storage furniture.

Compatible with 16mm and 18mm baseboards, it fits common panel standards and drawer structures.

Designed for smooth operation, concealed runners, and flexible configurations for residential and commercial furniture applications.

application



Quality Control & Testing

"Details Make a Difference" - Our Rigorous QC Process At FORMOR, quality isn't just a promise; it's a process verified by data.



Cycle Testing: Proven to withstand 50,000+ open and close cycles with a load capacity of up to 35kg.

Inspection: 100% standard product inspection before packaging to determine the ultimate feeling of use.

SGS report



OEM & ODM Service



1. Product Logo Customization

We offer stamping logo options to match your branding needs.

Customized logo solutions are available for tandem box drawer systems, and other hardware products.



2. Outer Carton Customization

Cartons can be customized with your logo, color, labeling, and packaging specifications.

We support OEM carton design to ensure safe shipping and a premium brand presentation.



3. Inner Packaging Customization

Inner boxes can be customized with customer logos, color printing, and artwork designs.

We offer OEM color box solutions for Tandem Box drawer systems, enhancing brand visibility and product presentation.



4. Load Capacity Customization

Drawer side thickness options are available to match different cabinet weight and application requirements.

All configurations are tested for 35–40 kg load capacity with proven durability through extended open close cycle testing.



5. Function Customization

The Tandem Box drawer system features full extension and soft closing for smooth, quiet, and stable operation.

Functional configurations can be customized to match different cabinet designs, usage habits, and project requirements.

OEM PACKING



FAQ



Q:What cabinet board thickness is compatible?

A:The Tandem Box is designed for cabinets using 16mm panel thickness,

which is a common standard in furniture manufacturing.



Q:What color options are available?

A:Standard color options include White, Grey, and Dark Grey, suitable for various furniture styles and interior designs.



Q:How durable is the Tandem Box system?

A:The drawer system has been tested for over 50,000 opening and closing cycles,

ensuring long-term performance and reliability in daily use.



Q:What is the maximum load capacity?

A:The Tandem Box system supports a maximum dynamic load of up to 35kg,

making it suitable for storing heavier kitchen utensils and household items.
