Ultra Thin 3D Adjustable Soft Closing Cabinet Hinge

Ultra Thin 3D Adjustable Soft Closing Cabinet Hinge

  • Item NO.:

    CH-O202
  • Material:

    Cold-rolled Steel
  • Finish:

    Nickel, Titanium Plating and Nano Coating
  • Weight:

    87g
  • Opening Degree:

    105°
  • Diameter Of Hinge Cup:

    35mm
  • Depth Of Hinge Cup:

    12mm
  • Range For Door Thickness:

    16-25mm
  • Dimension Of Door:

    3 -7mm
  • Cup Hole Distance:

    27mm
  • Packing:

    100 Pcs / Carton
  • Product Details

Product Description

Ultra Thin Profile With Premium Hidden Appearance: Designed with an ultra thin concealed structure that reduces visible hardware exposure and delivers a cleaner cabinet appearance. Optional decorative covers with customizable colors provide greater flexibility for furniture design.



Three Stage Motion Control With 10 Degree Buffer Closing: Different from conventional hinge structures, the hinge adopts a three stage opening and closing system with damping activated at approximately 10 degrees to provide smoother movement and improved closing control.



Triple Layer Surface Protection For Long Term Durability: Built with nickel plating, titanium electroplating, and a nano anti rust layer to enhance corrosion resistance. The hinge has completed over 120 hours of salt spray testing for improved surface durability.



3D Fine Adjustment For Flush Cabinet Alignment: Supports 3D adjustment and precision tuning after installation, helping cabinet doors achieve tighter alignment and cleaner visual gaps for a refined furniture finish.



Simplified Installation With Fixed Base Structure: The fixed base and top mounting configuration simplify assembly procedures while improving installation consistency. Suitable for door thickness from 16mm to 25mm and tested for repeated operation under 5kg loading conditions exceeding 5000 cycles.

CH-O202 Premium Furniture Cabinet Hinge

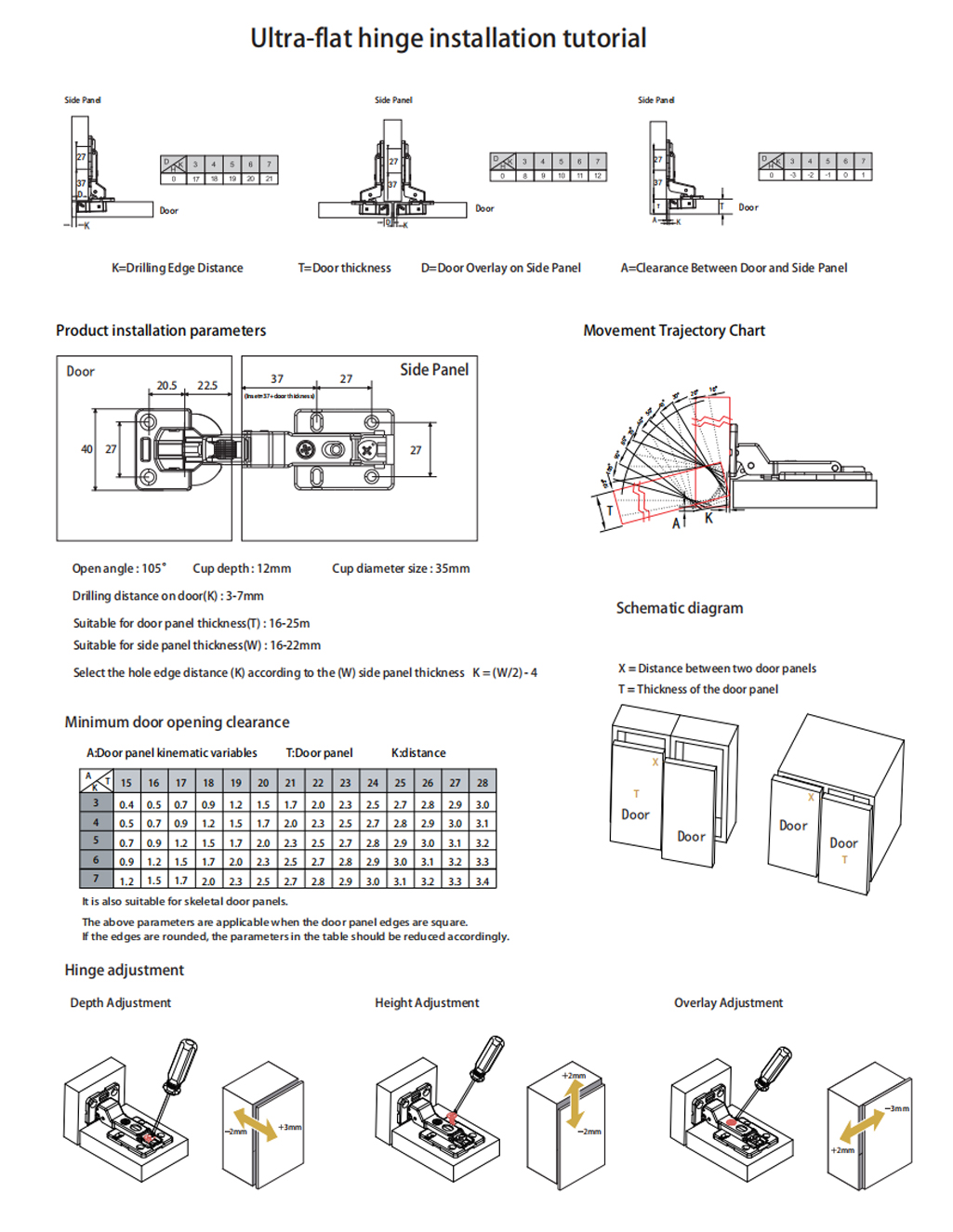

Product Drawing

This drawing provides a full overview of the mounting positions and product dimensions, making installation easier and more accurate.

Diameter of hinge cup: 35 mm

Deep of hinge cup: 12 mm

Cup hole distance: 27 mm

*For customized sizes, OEM and ODM service is available.

Concealed Cabinet Hinge Installation Dimension Guide





Product Application

Ideal for all types of Living room, Bedroom, Kitchen, Bathroom.

Designed for smooth movement, strong durability and everyday convenience.

The advanced Nickel Plated finish ensures the hinge remains rust-free even in humid environments.

application



Quality Control & Testing

"Details Make a Difference" - Our Rigorous QC Process At FORMOR, quality isn't just a promise; it's a process verified by data.



Salt Spray Test: 24 hours verified resistance to corrosion.

Cycle Testing: Proven to withstand 30,000+ open/close cycles.

Inspection: 100% standard product inspection before packaging to determine the ultimate feeling of use.

SGS report



OEM & ODM Service



1. Product Logo Customization

We offer laser marking, stamping logo options to match your branding needs.

Customized logo solutions are available for hinges, drawer systems, and other hardware products.



2. Outer Carton Customization

Cartons can be customized with your logo, color, labeling, and packaging specifications.

We support OEM carton design to ensure safe shipping and a premium brand presentation.



3. Color Polybag / Logo Polybag / Blister / Paper Cover Customization

Color Polybag / Logo Polybag / Blister / Paper Cover can be customized with your logo, labeling, and packaging specifications.

We support OEM carton design to ensure safe shipping and a premium brand presentation.



4. Mould Customization

We can develop new moulds based on your drawings or samples.

Our engineering team supports structural adjustments, prototype verification, and full OEM customization for hinges, slides, and drawer systems.



5. Material Customization

Materials can be customized with premium Shanghai Shinny, Shanghai Matt, Q235 and Jieyang cold-rolled steel options.

We provide material selection support to meet different budget levels, performance requirements, and target markets.



6. Surface Finishing Customization

We offer multiple surface finishing options to meet different design and corrosion-resistance requirements.

Available finishes include single-layer nickel plating, copper + nickel double-layer plating, titanium plating, black plating, black spraying, and gold spraying.

OEM PACKINGhinge customize

FAQ



Q: What makes this hinge different from standard concealed hinges?
A: The ultra thin structure combined with three stage motion control and 3D adjustment provides a cleaner appearance and more refined door alignment.



Q: Does the hinge support smooth closing at small opening angles?
A: Yes, damping starts at approximately 10 degrees to improve closing control and reduce impact.



Q: Can decorative covers be customized?
A: Yes, optional iron and plastic covers are available, and plastic cover colors can be selected for different furniture styles.



Q: Is this hinge suitable for thicker cabinet doors?
A: Yes, the hinge is designed for cabinet doors with thickness ranging from 16mm to 25mm.
