Full Extension Synchronised Concealed Undermount Slide

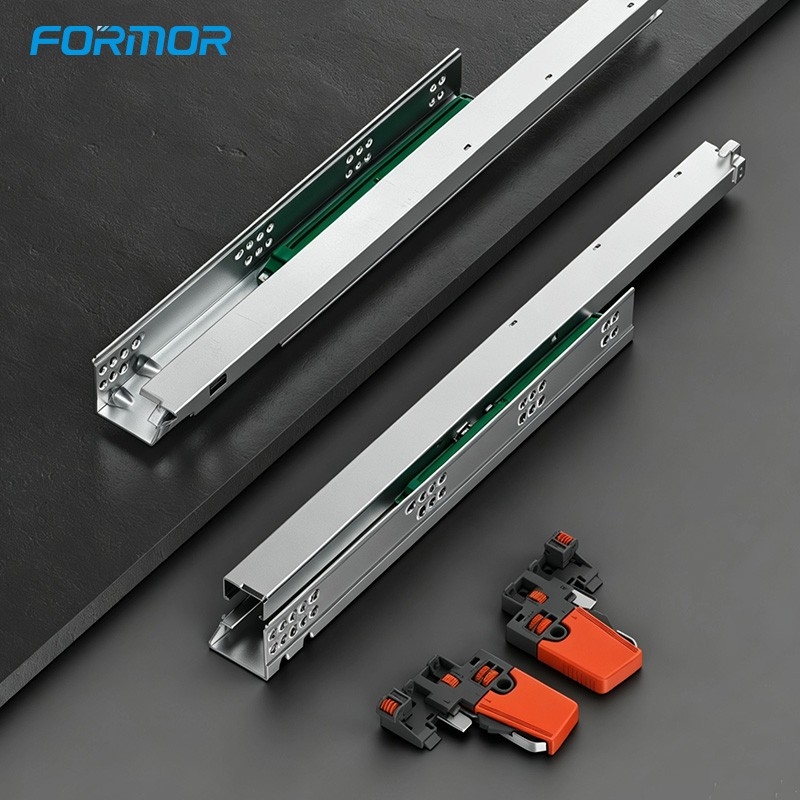

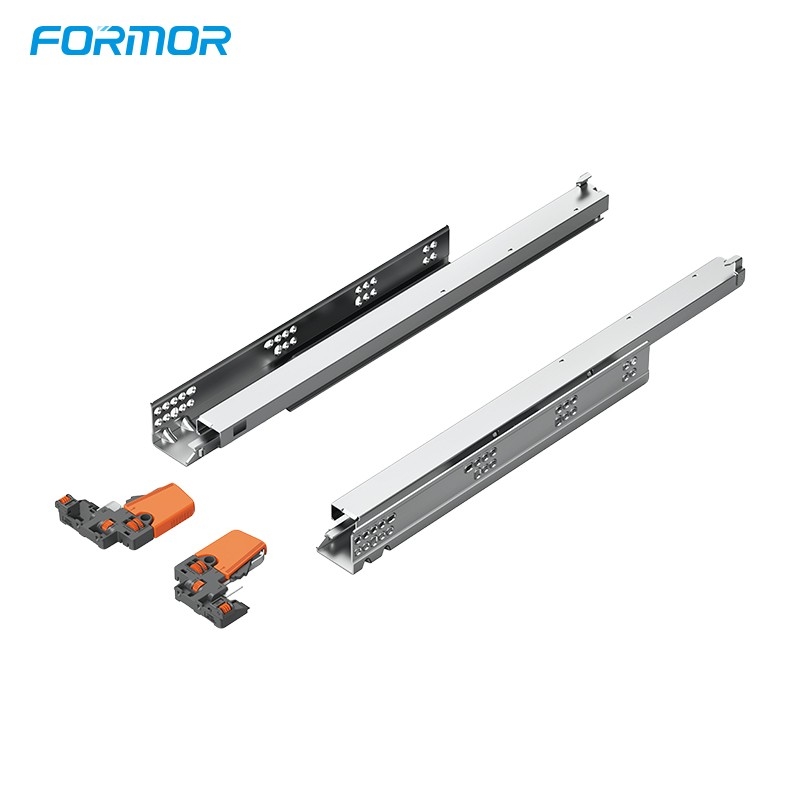

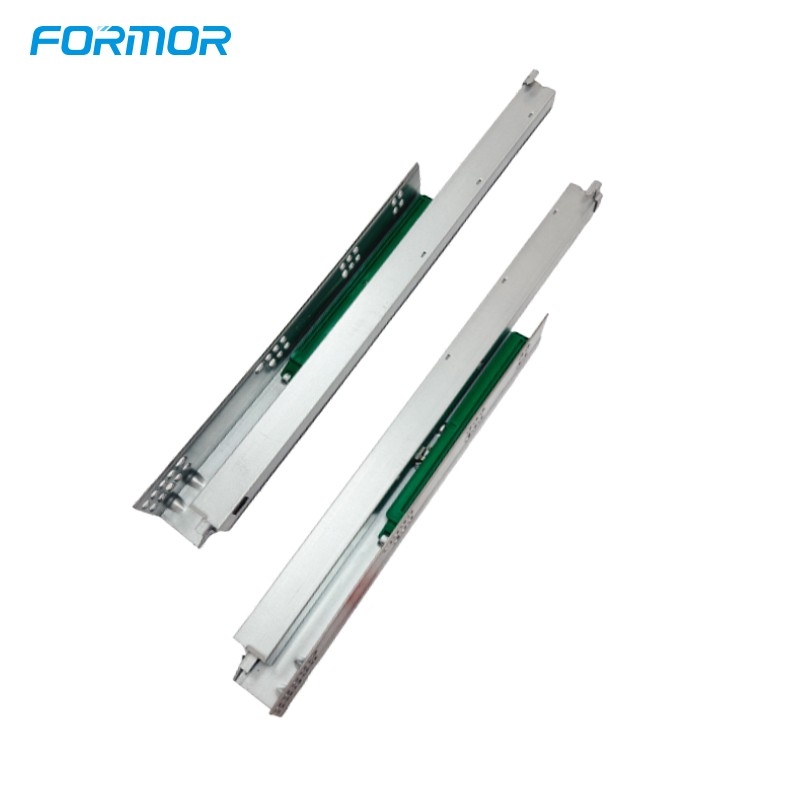

Full Extension Synchronised Concealed Undermount Slide

  • Item NO.:

    UM-3C23
  • Material:

    Galvanized Steel
  • Thickness:

    1.2*1.5*1.8mm
  • Wood Board Thickness:

    16/18mm
  • Length:

    250-550mm
  • Loading Capacity:

    40Kgs
  • Packing:

    10 Sets / Carton
  • Product Details

Product Description

3D Adjustment For Precise Drawer Alignment:The integrated 3D adjustment mechanism allows easy front-to-back, left-to-right, and up-and-down adjustments. It helps achieve perfect drawer alignment, making installation faster and ensuring a clean, professional finish.



Synchronized Movement For Smoother Operation:The synchronized sliding system keeps both rails moving at the same speed, delivering smoother, quieter, and more stable drawer operation. It reduces friction and enhances the overall user experience.



Heavy Duty Construction With 40 kg Load Capacity:Built with 1.2 × 1.5 × 1.8 mm thick steel rails, the slide provides outstanding strength and durability. It supports loads of up to 40 kg and has successfully passed 80,000 opening and closing cycles, making it ideal for high-frequency daily use.



Dust Protected Soft Closing Mechanism:The soft closing unit is equipped with a protective dust cover to prevent dust and debris from entering during installation and daily use. This helps maintain consistent damping performance and extends the service life of the slide.

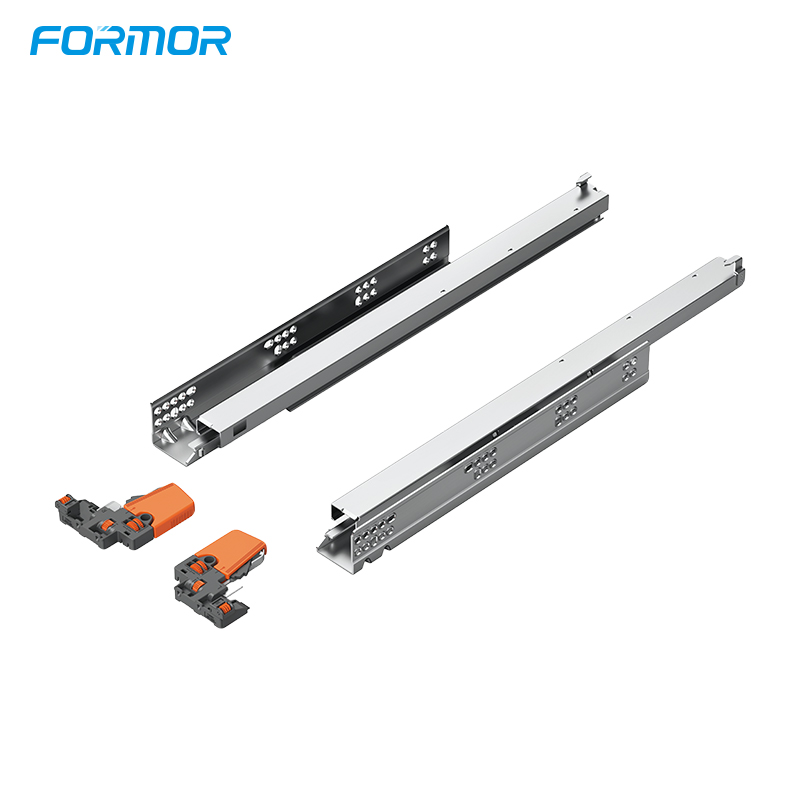

3Fold with 3D-adjustment part Undermount Slide

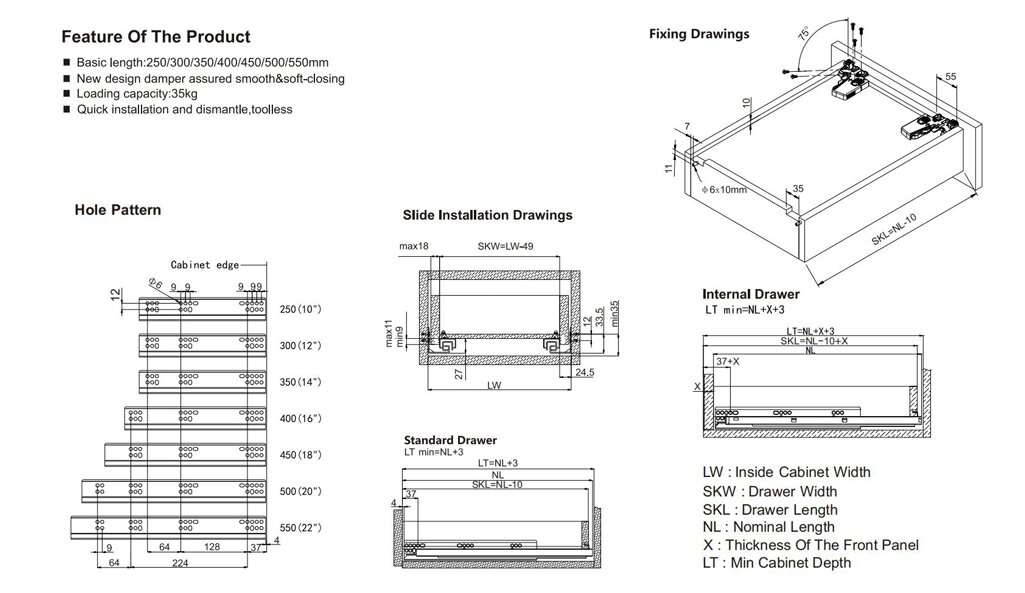

Product Drawing

This drawing provides a full overview of the mounting positions and product dimensions, making installation easier and more accurate.

*For customized sizes, OEM and ODM service is available.

UM-3C23 Undermount



Product Application

Ideal for all types of Living room, Bedroom, Kitchen, Bathroom.

Designed for smooth movement, strong durability and everyday convenience.

The advanced Nickel Plated finish ensures the hinge remains rust-free even in humid environments.

application



Quality Control & Testing

"Details Make a Difference" - Our Rigorous QC Process At FORMOR, quality isn't just a promise; it's a process verified by data.



Salt Spray Test: 48hours verified resistance to corrosion.

Cycle Testing: Proven to withstand 50,000+ open/close cycles.

Inspection: 100% standard product inspection before packaging to determine the ultimate feeling of use.

SGS report



OEM & ODM Service



1. Product Logo Customization

We offer laser marking, stamping logo options to match your branding needs.

Customized logo solutions are available for undermount slide, drawer systems, and other hardware products.



2. Outer Carton Customization

Cartons can be customized with your logo, color, labeling, and packaging specifications.

We support OEM carton design to ensure safe shipping and a premium brand presentation.



3. Color Polybag / Logo Polybag / Blister / Paper Cover Customization

Color Polybag / Logo Polybag / Blister / Paper Cover can be customized with your logo, labeling, and packaging specifications.

We support OEM carton design to ensure safe shipping and a premium brand presentation.



4. Mould Customization

We can develop new moulds based on your drawings or samples.

Our engineering team supports structural adjustments, prototype verification, and full OEM customization for undermount slide.



5. Load Capacity Customization

We provide different load capacity options: 25kg / 30kg / 35kg / Heavy-duty.

Optimized rail thickness and structure for different drawer widths and materials



6. Function Customization

We provide full and partial extension options, soft closing, push to open, soft close + push open combinations,

and 1D / 2D / 3D adjustability—designed to match different user experiences and price positioning.

OEM PACKING



FAQ



Q:What panel thickness is supported?

A: Compatible with 16 mm and 18 mm wooden panels.



Q: Do you provide installation instructions?

A: Yes. Each carton includes an installation drawing, and an installation video is also available.



Q: What is the load capacity?

A: It supports up to 40 kg and has passed 80,000 opening and closing cycles.



Q: What are the benefits of the synchronized design?

A: The synchronized mechanism provides smoother, quieter, and more stable drawer operation than no synchronized.
